WS-WN531P3-A Dual Band Wifi Router

• Width/depth/height, mm
  200mm x 200mm x 30mm

• Ports
  1 x 10/100/1000Mbps WAN PORT ,
  4 x 10/100/1000Mbps LAN PORT
• Button
  1 xReset, 1xWPS, 1xTURBO, 1x POWER ON/OFF, 1 x TouchLink
• LED
  WN531P3, 1 x Power, 4x LAN, 1 x WAN, 1 x WiFi, 2xStatus(WAVLINK LOGO)
• Solution
  MT7621A+MT7613A+MT7603E
  MIPS1004Kc Dual 880MHz
• Flash
  128Mb
• DDR2 RAM
  1024Mb
• Power Supply
  DC12V/1A
• Rated Voltage/ requency
  input:100-240 Va.c. 50/60Hzb

The Device upgrades your network to the next generation of Wi-Fi. With combined wireless speeds of up to 2.4GHz 300Mbps and 5GHz 867Mbps, the device provides excellent speeds and superior omnidirectional wireless range. You can run multiple applications in a large home or office. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidthintensive tasks like online gaming or HD video streaming can be processed by the 5GHz band– all at the same time.

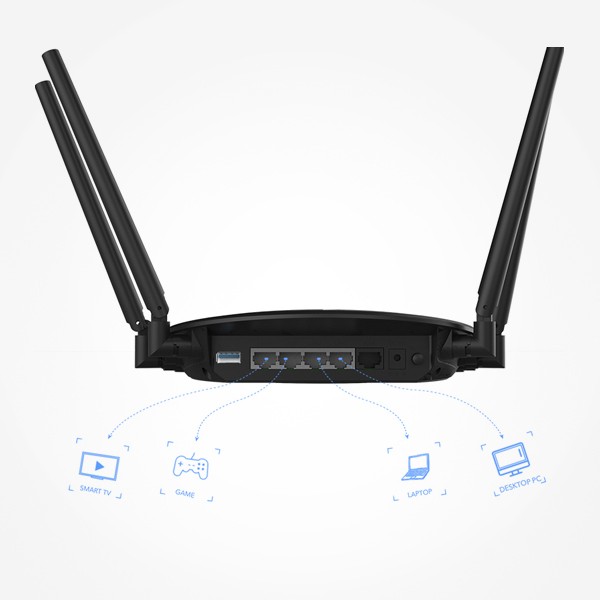

If you prefer a wired connection, the Router boasts 1000Mbps LAN ports to provide a lightning-fast and lag-free experience. You can run multiple applications in a large home or office.

• WAN Type
  PPoE, Dynamic IP, Static IP
• DHCP Settings
  Server, Client, DHCP Client List
• USB Sharing
  Support Samba(Storage)
• Function
  Remote Management, DDNS, DHCP Server, Wireless Setting

• Complies with IEEE 802.11ac/a/n/g/b standards
• Simultaneous 5G 867Mbps and 2.4G 300Mbps connections for 1167Mbps of total availablebandwidth
• MU-MIMO communicates with several devices at once to reduce waiting time and speed up connections
• USB 3.0 Port - share files & media with networked devices
• Supports by PPPoE, Dynamic IP,static IP and WISP access to the Internet
• Built-in DHCP server with automatic dynamic IP address distribution
• Provides 10/100/1000Mbps Auto-Negotiation Ethernet WAN/LAN ports
• External antennas provide omnidirectional stable signal and superior wireless coverage
• Easy one-touch wireless security encryption with the WPS button
• Clear the cache to speed up with the TURBO button
• TouchLink Function : Touch the wavlink logo, user can connect the guest Wi-Fi with no enter the password in two minutes, and then free access to the Internet

• Standard
  IEEE 802.11b/g/n/a/ac
• Frequency band
  2.4GHz, 5GHz
• Transmit Power
  2.4G:19dBm, 5G: 20dBm
• Sensitivity
  802.11b: -93dBm /802.11g: -73dBm / 802.11n: -68dBm
• Wireless Security
  WPA/WPA2 Mix, WPA-PSK , WPA2-PSK Encryption
• Antennas
  4x5dBi Omni Directional Antennas
• Distance
  Outdoors 100Meters (According to the actual environment change)
