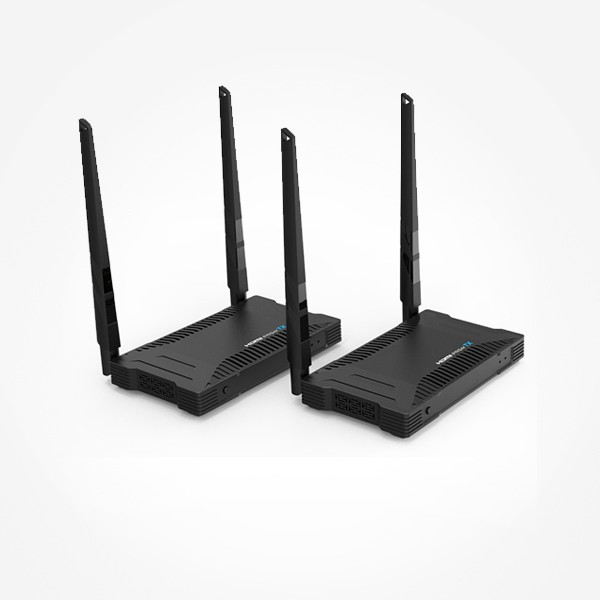

WS-WH1000-HD Wireless Extender

• Width/depth/height, (mm)
  145mm x 89mm x 17.5mm (L x W x H)
• Weight
  245g
• Shell Color
  Black
• Ports
  TX:Input: 1 x HDMI, 1 x USB
  Output: 1 x HDMI
• RX:Input: 1 x USB
  Output: 1 x HDMI, 1 x VGA, 1 x RCA

• Buttons
  1 x Pair button

• LED
  Power Indicator: Red
  Status Indicator: Green

• Power Supply
  DC5V / 2A

• Working Standards
  No latency within 5 meters; Maximum 200ms latency within 50 meters

• Power Consumption
  8Watt (1TX + 1RX)

• Rated Voltage / Frequency / Current
  100-240 AC. 50/60Hz, 0.7A Max, CLASSⅡ

Detachable antennas, easily portable casing, elegant dark colour, all these elements give you aesthetic pleasure.

When TX and RX are in a more complex environment, say a house with many brick walls, the built-in amplifier will make it possible for signal to travel through walls, which extends the signal coverage as much as possible.

To send videos to receivers, you can connect the transmitter to various AV devices including a large realm of possibilities, such as digital cameras, set-top-boxes, laptops, etc.

To receive videos, you only need to set up the network between TX and RX, RX will automatically search TX signals, making it easier and practical. If necessary, a transmitter can extend up to 4 receivers, you can either work on projects or enjoy your entertainment effectively.

Designed with both HDMI and VGA ports, giving more options for you to choose. You can connect either HDMI monitors or VGA monitors; other than that, you can also share your set-top-box channels to other monitors.

For the moment, TX/RX kit supports up to 1080P resolution images; you can transmit videos to other monitors for gaming, video sharing, commercial, medical imaging, etc.

One transmitter can extend to max 4 receivers. To add up more receivers, you only need to press and hold the function button for 6 to 10 seconds on both transmitter and receivers to complete the pairing process.

As to applying the TX and RX kit to practical use, you may come across them in malls, or conference rooms; you may also need to enjoy your family time and study in classrooms. Any possible places that need video transmission, you can never go wrong with this product.

- Support Max Ultra-HD 1920x1080@60Hz.

- Compliant with HDMI2.0b, HDMI1.4 and DVI1.0.

- H.265 Compressor.

- Support IR TX/RX Terminal.

- Wireless Transmission Distance: up to 300M.

- Wireless 5G 802.11ac.

- Video Input: 1080P@50/60 Hz, 1080i@50/60 Hz, 720P@50/60 Hz, 576P, 576i, 480P, 480i.

- Video Input: 1080P@50/60 Hz, 1080i@50/60 Hz, 720P@50/60 Hz, 576P, 576i, 480P, 480i.

- Audio Input: MAX 8 channel.

- Audio Output: Stereo (2 channel).

- Audio Sampling Rate: 32kHz, 44.1kHz, 48kHz.

- 1 Button for Rebooting or Pairing.
