MAG544w3

• Width/depth/height, (mm)
  115 × 115 × 28 mm
• Weight, g
  170

• Operating system
  Linux 4.9
• DRM option
  Upon request
• Middleware supported
  Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available.

• Chipset
  Amlogic S905Y4-B
• Processor
  Quad-core ARM Cortex-A35, 2,000 MHz
• Performance
  16 500 DMIPS
• RAM
  1 GB LPDDR4
• Flash memory
  4 GB eMMC

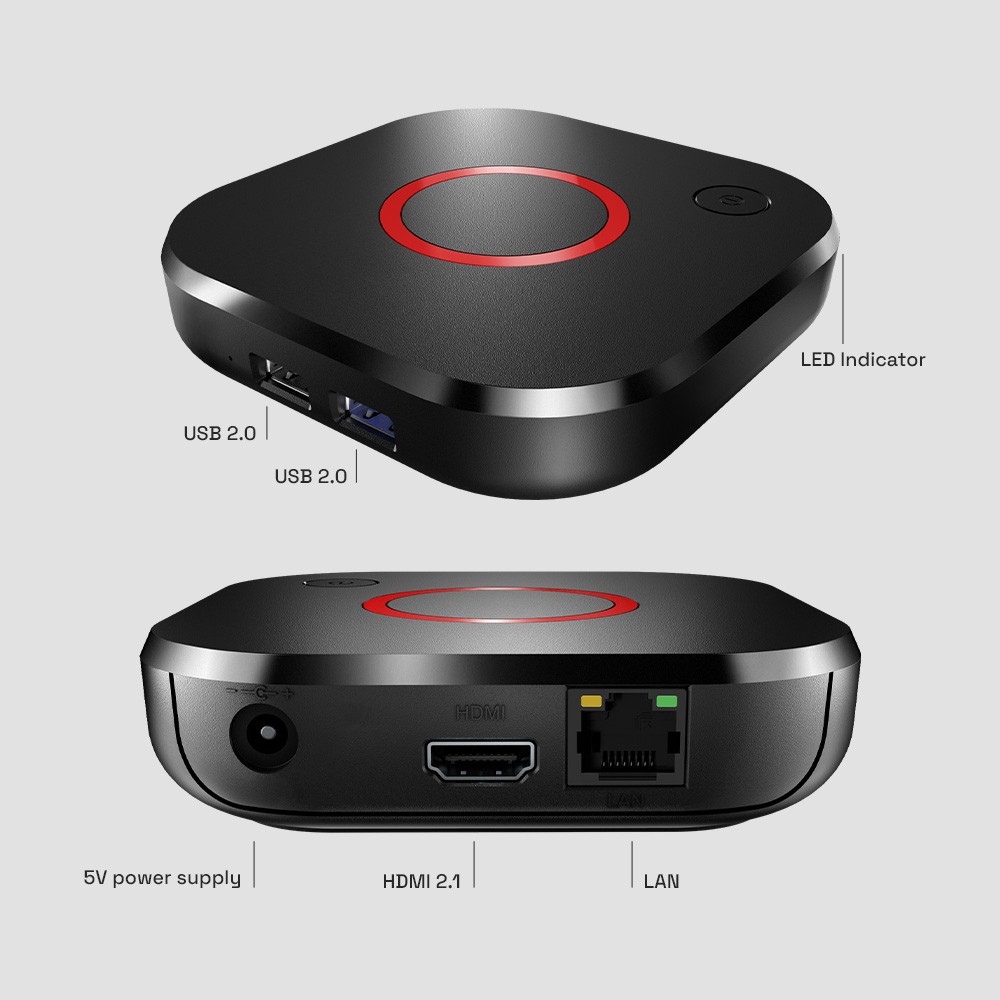

HDMI 2.1, 100 Mbps, USB 2.0 × 2, Built-in 2T2R ac (MAG544w3 only)

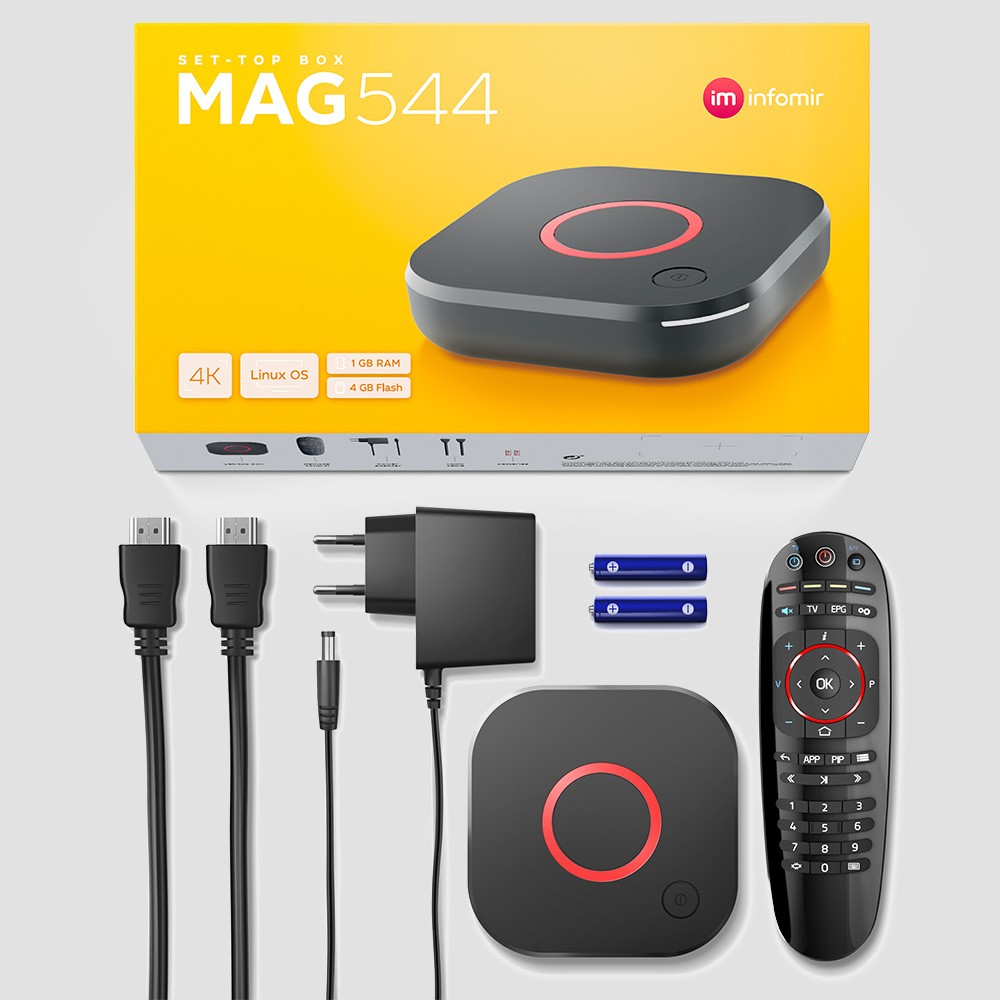

A MAG544/MAG544w3 set-top box, MiniFusion IR remote control, HDMI cable, 1.2 m, Power supply*, AAA batteries 2 pcs

• Audio сodecs
  MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™

• Video modes
  PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
• Video сodecs
  MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
• Video containers
  TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
• Image formats
  JPEG, PNG, BMP, RAW
• Subtitles
  DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions
• Playlist formats
  M3U, M3U8, PLS, CUE
