MAG522W3-4K Linux Set Top Box

SKU : MAG522w3

 5 Reviews 5 Ratings
$ 99.99 $ 110.99 (Save 10%)

MAG 522 and MAG 522 w3 are high-performance Linux set-top boxes. These devices are powered by an Am logic S905X2 chipset with a 25% more powerful ARM Cortex-A53 CPU, enabling them to playback 4K content smoothly at 60 fps.

  • Free Express One Day Shipping

  • 24/7 Technical Support

Quantity

− +
  • Description

Key Features

  •   4K Support
  • 1 GB Ram
  •  ARM
       Cortex
  • IR Remote




Request A Callback
Dimensions
  • Width/depth/height, (mm)
    132x87x26
  • Weight, g
    125
Software
  • Operating system
    Linux 4.9
  • DRM option
    Upon request
  • Middleware supported
    Pre-integrated Ministra TV platform from Infomir. Image enhancement with operator’s applications, customization, or full replacement is available.
Hardware
  • Chipset
    Amlogic S905X2
  • Processor
    Quad-core ARM Cortex-A53, 1,900 MHz
  • Performance
    18,400 DMIPS
  • RAM
    1 GB
  • Flash memory
    4 GB eMMC
Interfaces

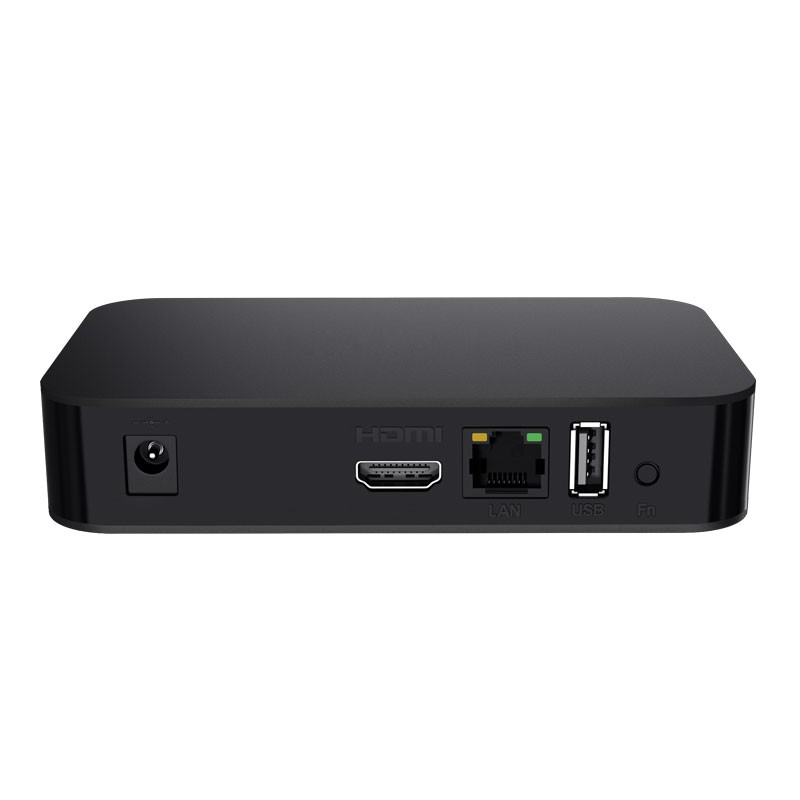

HDMI 2.1, 100 Mbps Ethernet, built-in 2T2R ac Wi-Fi module, USB 3.0 x 1, USB 2.0 x 1

Sources of media content

PC or NAS, multimedia broadcasts, USB devices

Standard set

MAG522w3 set-top box, user manual, HDMI cable, 12 V 1 A power adapter (optionally, a 5 V 2 A power adapter), remote control, 2 AAA batteries, packaging

Audio

  • MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™

    • Audio formats
  • Audio formats

    AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV

    • video
  • Video modes
    PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
  • Video сodecs
    MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optionally), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
  • Video containers
    TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
