MAG520W3-4K HD Linux Set Top Box

SKU : MAG520W3

 3 Reviews 5 Ratings
$ 105.99

MAG 520 W3 is a high-performance Linux set-top box that features an Amlogic S905X2 chipset, a 25% more powerful ARM Cortex-A53 CPU, and a better GPU. It enables smooth 4K 60fps content playback.

  • Free Express One Day Shipping

  • 24/7 Technical Support

Select Warranty

  • 1 year warranty
  • 2 year warranty
  • 3 year warranty
  • 5 year warranty

Quantity

− +
  • Description

Key Features

  • 4K Support
  • 1 GB Ram
  •   Wi-Fi
  • ARM
    Cortex
  • IR Remote


Request A Callback
Dimensions
  • Width/depth/height, (mm)
    120x78x21
  • Weight, g
    110
Software
  • Operating system
    Linux 4.9
  • DRM option
    Upon request
  • Middleware supported
    Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available
Hardware
  • Chipset
    Amlogic S905X2
  • Processor
    Quad-core ARM Cortex-A53, 1,900 MHz
  • Performance
    18,400 DMIPS
  • RAM
    1 GB DDR3
  • Flash memory
    4 GB eMMC
Interfaces

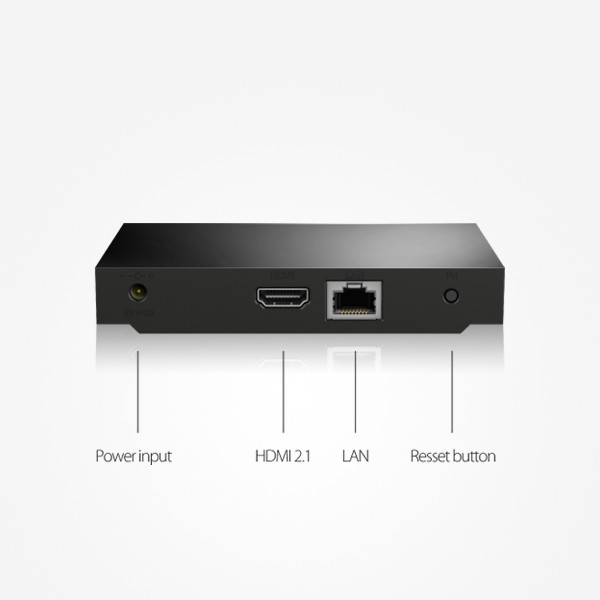

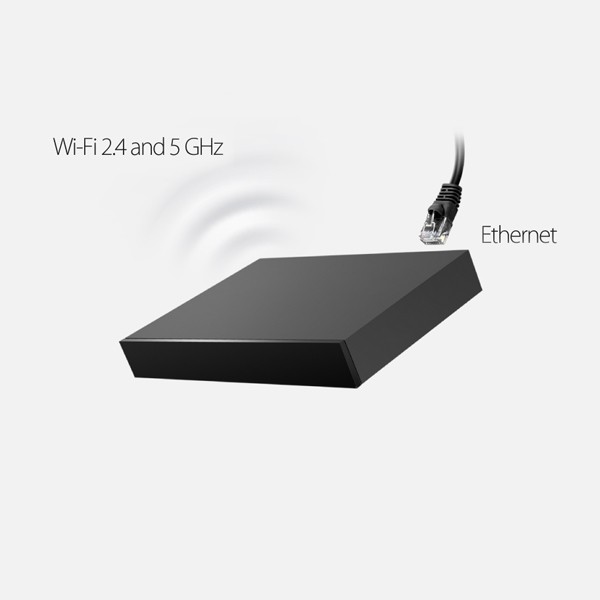

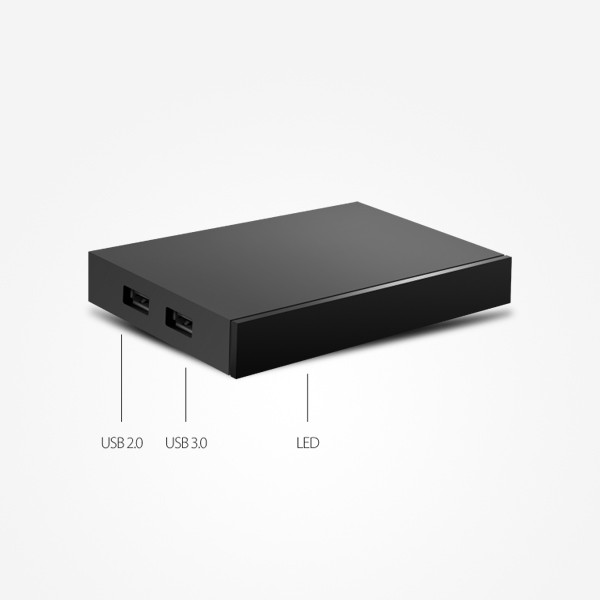

HDMI 2.1, Ethernet 100 Mbps, 1 × USB 3.0, 1 × USB 2.0, built-in 2T2R ac Wi-Fi module

Sources of media content

PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices

Standard set

A MAG520w3 set-top box, a user manual, an HDMI cable, a 5V 2A power adapter, a remote control, two AAA batteries, and packaging

Audio
  • Audio сodecs
    MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Audio formats
  • Audio formats
    AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
video
  • Video modes
    PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
